How do you know which connector goes to which injector?
I just put an EJ22T harness on my EJ20G and I don't know which connector goes to which injector on each side. How do you tell which is which?
98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
-
kimokalihi
- Fifth Gear
- Posts: 8360
- Joined: Mon Nov 06, 2006 3:41 am
- Location: Tenino, WA
Morning? It's night time for me. I'm up late, should have gone to bed an hour ago.
I gotta get off this damn forum. Are the wire colors the same on all the subaru harnesses for the injectors? I'm using an EJ22T harness on an EJ20G/K.
I'll look in the FSM I guess.
I gotta get off this damn forum. Are the wire colors the same on all the subaru harnesses for the injectors? I'm using an EJ22T harness on an EJ20G/K.
I'll look in the FSM I guess.
98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
If the harness is put on right it should be obvious,due to which side looks dirtier as well as how the wire next to the connectore are bent.
94SS.Wiseco forged pistons,TD04,TMIC,WALBRO 225,440's,3" all the way,revtronix stage 2,enough other crap to fill the internet.
THE TRIBUTE BUILD>>>LINKY LINK>>> http://bbs.legacycentral.org/viewtopic.php?p=295455#295455
THE TRIBUTE BUILD>>>LINKY LINK>>> http://bbs.legacycentral.org/viewtopic.php?p=295455#295455
This is posted by me somewhere, I will try to find it.
IF the harness is on the manifold correctly (hard to mess up, the main connectors are near the battery)....
THEN the front and rear injector connectors (and coils if going COP) are marked for front/rear cylinders. Front cylinders will have either White tape around the sleeving or have lighter connectors than the rears.
edit....found it.
http://bbs.legacycentral.org/viewtopic. ... 8&start=46
IF the harness is on the manifold correctly (hard to mess up, the main connectors are near the battery)....
THEN the front and rear injector connectors (and coils if going COP) are marked for front/rear cylinders. Front cylinders will have either White tape around the sleeving or have lighter connectors than the rears.
edit....found it.
http://bbs.legacycentral.org/viewtopic. ... 8&start=46
'93 Winestone SS Auto, '91 Pearl White SS.
'93 Pure White SS EJ20G slanty intercooled, SIDESWIPED! In stasis.
'94 FWD and '95 AWD Laguna Blue SVXs.
2017 Pure Red BRZ Limited w/Performance pack
'93 Pure White SS EJ20G slanty intercooled, SIDESWIPED! In stasis.
'94 FWD and '95 AWD Laguna Blue SVXs.
2017 Pure Red BRZ Limited w/Performance pack
-
kimokalihi
- Fifth Gear
- Posts: 8360
- Joined: Mon Nov 06, 2006 3:41 am
- Location: Tenino, WA
Cool, thanks!
98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
The 90 harness was actually labeled, 1, 2, 3, 4. Nice feature
Josh
surrealmirage.com/subaru
1990 Legacy (AWD, 6MT, & EJ22T Swap)
2020 Outback Limted XT
If you need to get a hold of me please email me rather then pm
surrealmirage.com/subaru
1990 Legacy (AWD, 6MT, & EJ22T Swap)
2020 Outback Limted XT
If you need to get a hold of me please email me rather then pm
-
kimokalihi
- Fifth Gear
- Posts: 8360
- Joined: Mon Nov 06, 2006 3:41 am
- Location: Tenino, WA

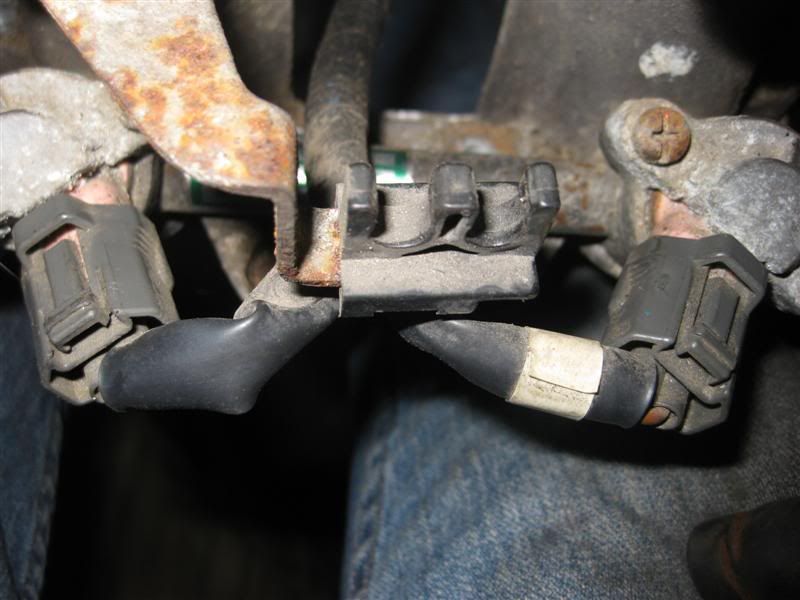

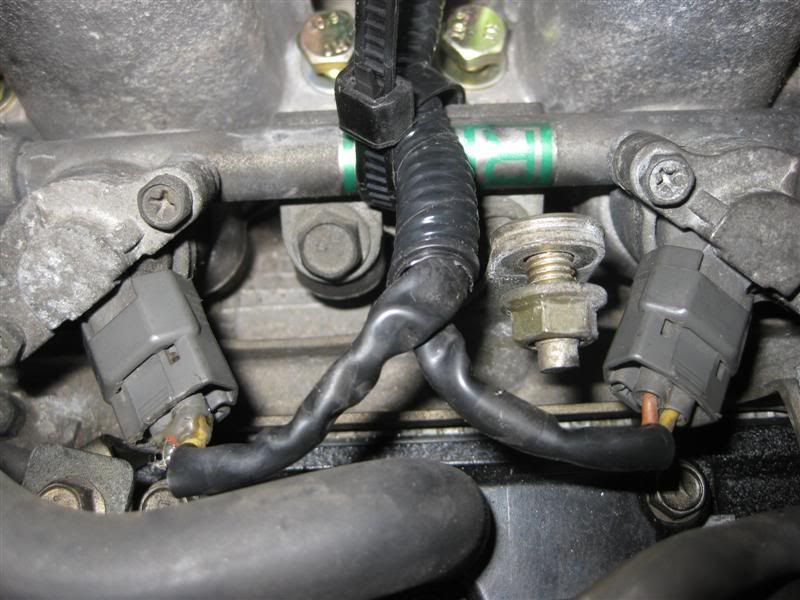

I have 2 EJ22T harnesses here. One is a 92 I believe and the other is a 91. One has the tape on one connector, the other does not.
92 EJ22T
91 EJ22T
92 EJ22T
91 EJ22T
