Splitting The EJ22T Case Can't Remove The Last Little Bolt

Post by kimokalihi »

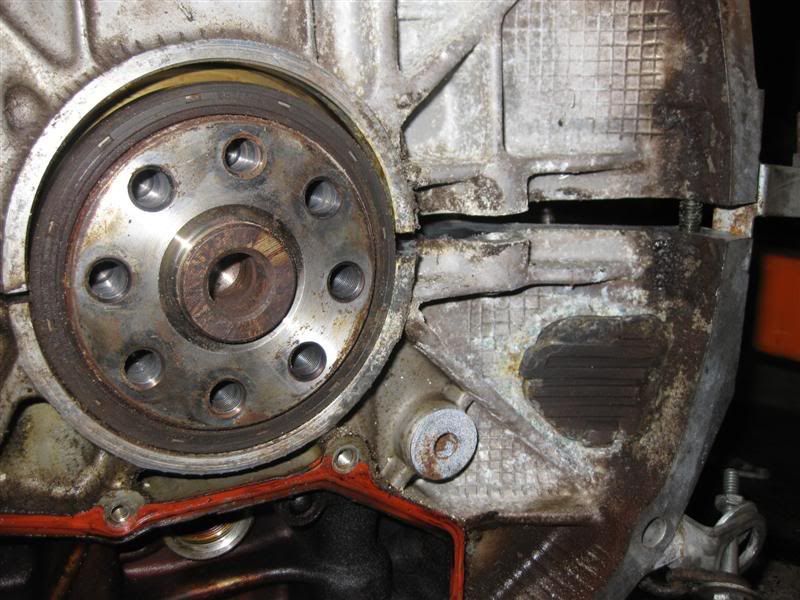

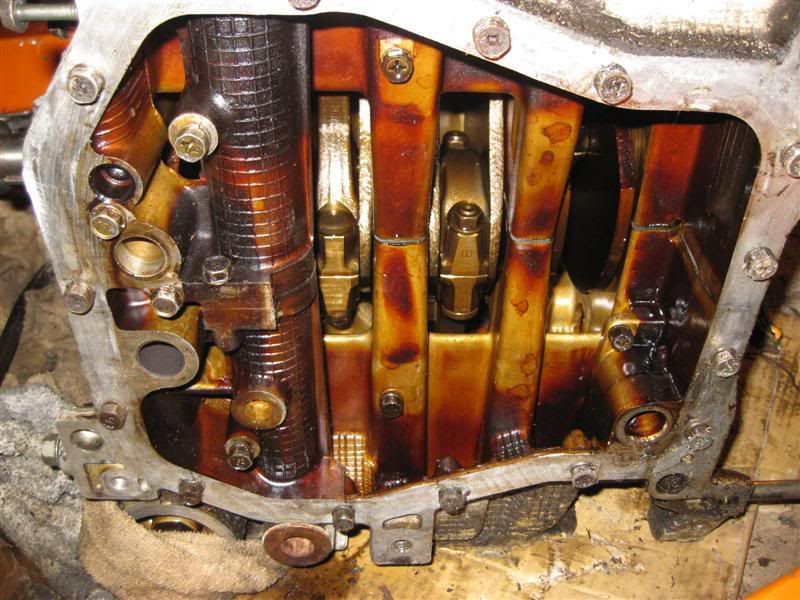

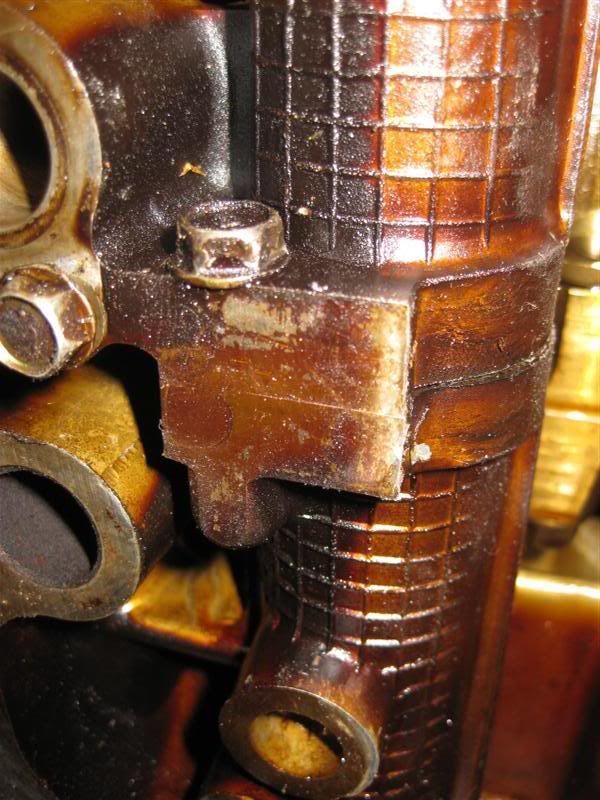

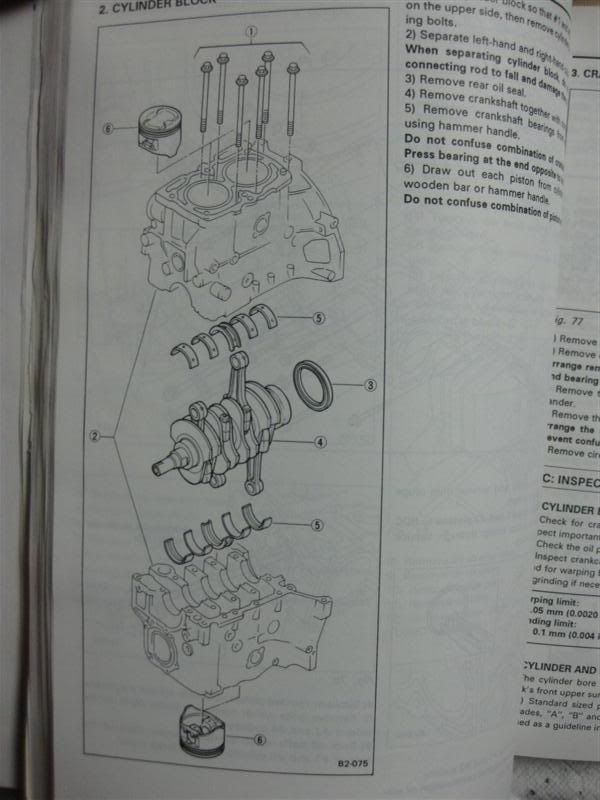

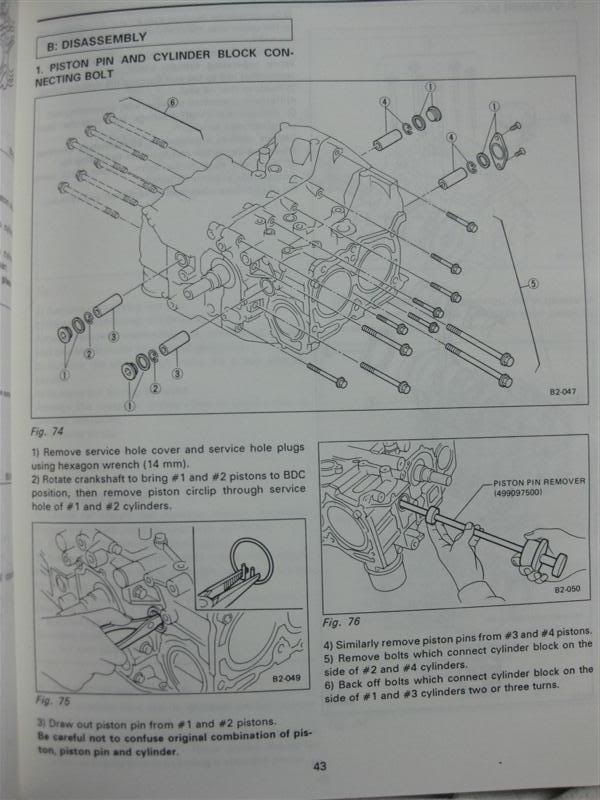

I've just finished stripping my EJ22T to sell the case halves to another forum member. I've come across a problem. The factory service manual tells me there are 17 bolts. 6 long ones on one side, 2 long ones on the other side along with 9 short bolts on the same side. I removed all of these bolts and happened to notice an 18th bolt that is not mentioned or drawn in the diagrams of the FSM.

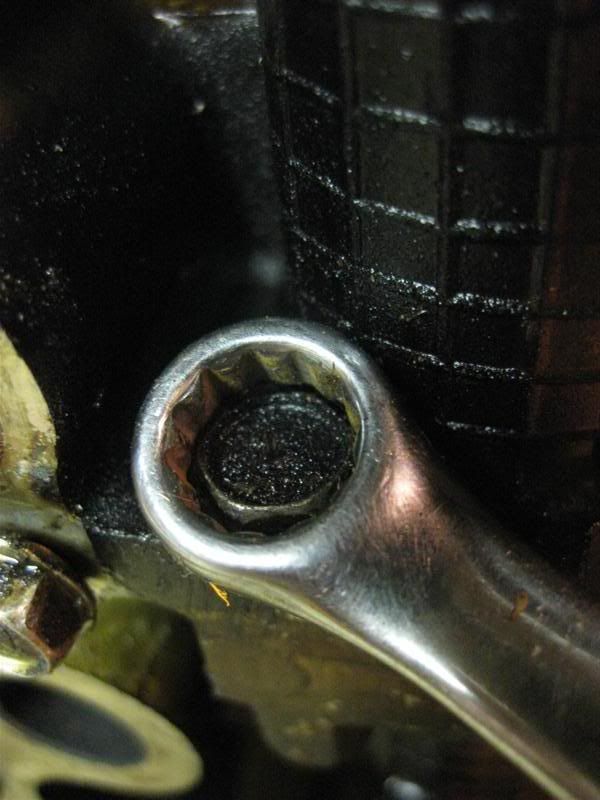

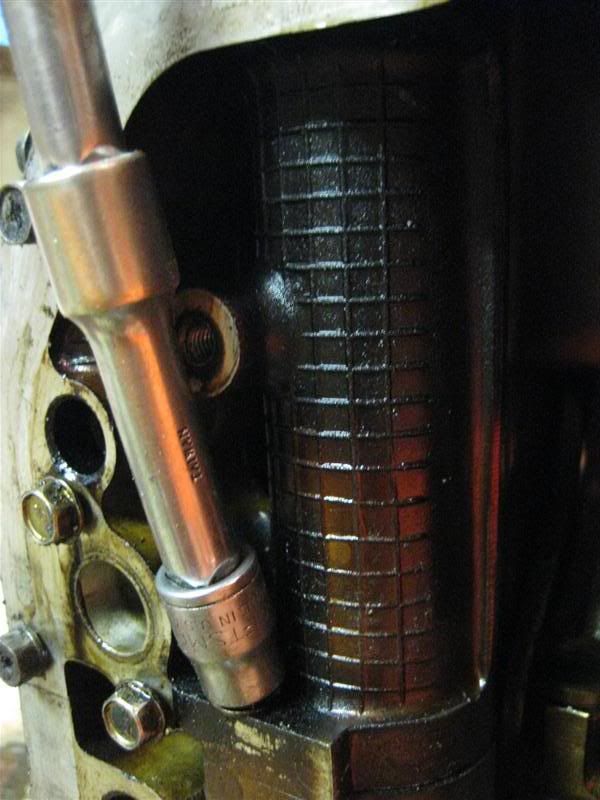

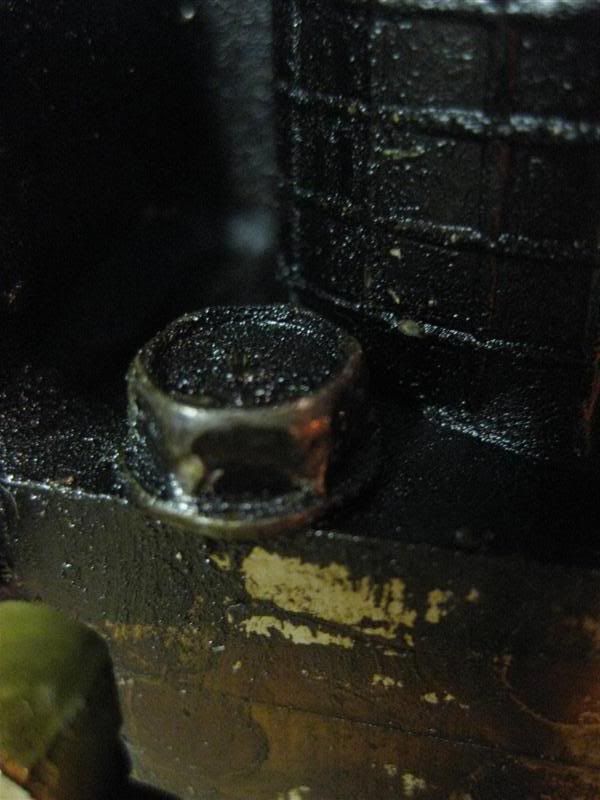

It definately appears to be holding the block together on the bottom of the inside of the engine. Problem is, I can't get it out. There's basically no room whatsoever to get a socket and ratchet on it and if you use an extension you can get somewhat on the head of the bolt but the extension has to be at such an angle that if you try to loosen the bolt it just strips it. I tried a box end wrench but there's not even enough room to get that on. I tried the open end and that just stripped it too.

What do I do? How do I get that damn bolt out?

Kimo



98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
PhyrraM
Fourth Gear
Posts: 1980
Joined: Thu Aug 11, 2005 4:34 pm
Location: Lake Elsinore, CA

Post by PhyrraM »

Try a 10mm flare wrench
1/4 drive 10mm socket w/ short extension or swivel.

Do you have access to a lathe? Turn down a 10mm socket to fit.
'93 Winestone SS Auto, '91 Pearl White SS.
'93 Pure White SS EJ20G slanty intercooled, SIDESWIPED! In stasis.
'94 FWD and '95 AWD Laguna Blue SVXs.
2017 Pure Red BRZ Limited w/Performance pack
93forestpearl
Fifth Gear
Posts: 3043
Joined: Tue Jan 25, 2005 9:14 pm
Location: Twin Cities, MN

Post by 93forestpearl »

I've always used an open-ended 10mm wrench.
→Dan

piddster34 at h0tma1l d0t c0m
gijonas
Fourth Gear
Posts: 1010
Joined: Sat Nov 08, 2008 10:57 pm
Location: Damariscotta, Maine

Post by gijonas »

You need to use a 1/4 drive socket,that monstrosity you have pictured has no chance of fitting a 1/4 will go right on.or if you dont want to buy $5 in tools you could clearance the block a little bit just behind the head of the bolt,or grind your wrench thinner.
94SS.Wiseco forged pistons,TD04,TMIC,WALBRO 225,440's,3" all the way,revtronix stage 2,enough other crap to fill the internet.

THE TRIBUTE BUILD>>>LINKY LINK>>> http://bbs.legacycentral.org/viewtopic.php?p=295455#295455
kimokalihi
Fifth Gear
Posts: 8360
Joined: Mon Nov 06, 2006 3:41 am
Location: Tenino, WA

Post by kimokalihi »

Gonna grind the wrench. Or maybe stop by the auto parts place and buy another box end and grind it.

Thanks
98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
93forestpearl
Fifth Gear
Posts: 3043
Joined: Tue Jan 25, 2005 9:14 pm
Location: Twin Cities, MN

Post by 93forestpearl »

Also, are the block halves seated back together? If they are split at all you are putting a lot more tension on the bolt.
→Dan

piddster34 at h0tma1l d0t c0m
kimokalihi
Fifth Gear
Posts: 8360
Joined: Mon Nov 06, 2006 3:41 am
Location: Tenino, WA

Post by kimokalihi »

Yeah I figured that. I grinded the wrench down and got the bolt out. Pushed the pistons out and removed the crank and rods. Block is now back together with all the bolts finger tight and it's wrapped in saranwrap in a box in my room ready to ship out monday. Well not quite ready because it doesn't fit in the box all the way so I have to buy a new box that's bigger.

I'm glad that's over with. Now I can clean out the garage and get ready to start on my swap.

And blackbart will finally get his block soon.
98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
douglas vincent
Knowledgeable
Knowledgeable
Posts: 3336
Joined: Sun Apr 27, 2003 5:50 am
Location: OR, Portland
Contact:

Post by douglas vincent »

3/8 drive socket works GREAT. BUT....

You have to use a small 3/8 breaker bar....
Reddevil, Awaiting new heart, will it ever happen?
1990 wagon, EJ25 12.3 @ 116.5 FAST Family wagon getting new motor soon
1992 wagon, wifes daily, high compression
1992 Touring wagon, should I keep it?
kimokalihi
Fifth Gear
Posts: 8360
Joined: Mon Nov 06, 2006 3:41 am
Location: Tenino, WA

Post by kimokalihi »

I've only got 1/2" breaker bars. It would be nice to have a 3/8" breaker bar though. Do they make 1/2" to 3/8" adapters? I can never find them, only the other way around. A friend of mine told me it was because if you need to use a 1/2" ratchet or breaker bar on it, you shouldn't be using 3/8" sockets on it.
98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
93Leg-c
Fourth Gear
Posts: 1886
Joined: Mon Oct 27, 2003 7:17 am
Location: Oahu, Hawaii, USA

Post by 93Leg-c »

1/2 to 3/8 adapters can be found at Sears, autopart stores, hardware stores, etc. I've got em and use them often. The adapters can take a lot of abuse but don't try using them to break loose an axle nut or crankshaft bolt. You will probably end up shearing the 3/8 male end off.
