Sourcing Subaru connector pins
I am trying to find a place where I can source new electrical pins which fit stock Subaru connectors.
I am building a wiring harness from scratch and instead of splicing wires I want to connect the wires directly to connectors.
I know there is a range of pin sizes....injector connectors vs engine harness plug pins. I want to be able to source all the different sizes.
Has anybody ever found these?
I am building a wiring harness from scratch and instead of splicing wires I want to connect the wires directly to connectors.
I know there is a range of pin sizes....injector connectors vs engine harness plug pins. I want to be able to source all the different sizes.
Has anybody ever found these?
maciek puszynski
01 Impreza | v6 STi RA | 5mt | ej236t
93 Legacy Turbo | TW | 4eat | ej22t
16 WRX | 6mt | fa20
98 Legacy GT | wagon | 5mt | ej25d
2.36L Turbo - RSTi Build
01 Impreza | v6 STi RA | 5mt | ej236t
93 Legacy Turbo | TW | 4eat | ej22t
16 WRX | 6mt | fa20
98 Legacy GT | wagon | 5mt | ej25d
2.36L Turbo - RSTi Build
-
- Third Gear
- Posts: 957
- Joined: Sun Nov 23, 2003 4:16 am
- Location: Moscow, ID and Pullman WA
- Contact:
I couldn't find them either......there has to be a place to get these.
I want to start building custom harnesses for standalones using all subaru clips for sensors and actuators. If I can find these I can start helping people wire thier Legacys with all new electronics and now splicing crap into 20 year old wiring.
I first need to do it on my own vehicle for R&D.
I want to start building custom harnesses for standalones using all subaru clips for sensors and actuators. If I can find these I can start helping people wire thier Legacys with all new electronics and now splicing crap into 20 year old wiring.
I first need to do it on my own vehicle for R&D.
maciek puszynski
01 Impreza | v6 STi RA | 5mt | ej236t
93 Legacy Turbo | TW | 4eat | ej22t
16 WRX | 6mt | fa20
98 Legacy GT | wagon | 5mt | ej25d
2.36L Turbo - RSTi Build
01 Impreza | v6 STi RA | 5mt | ej236t
93 Legacy Turbo | TW | 4eat | ej22t
16 WRX | 6mt | fa20
98 Legacy GT | wagon | 5mt | ej25d
2.36L Turbo - RSTi Build
-
- Third Gear
- Posts: 957
- Joined: Sun Nov 23, 2003 4:16 am
- Location: Moscow, ID and Pullman WA
- Contact:
I just went by my dealer today and asked, he brought out a big case full of them. It wasn't a Subaru part numbering system, but their invoice was sitting in the case so I snuck a look. They get them from SPX Kent-Moore.

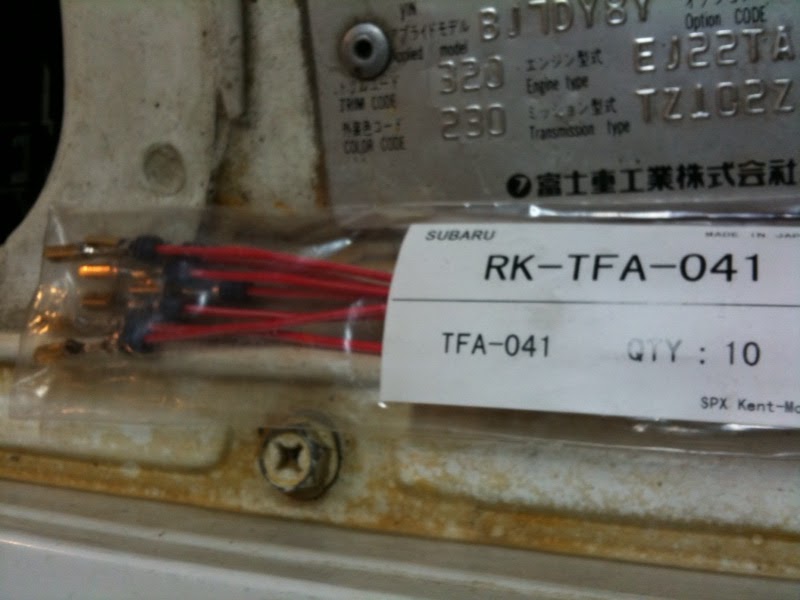

edit; what I thought were just pins were something else, so it's just these in many sizes:
edit; what I thought were just pins were something else, so it's just these in many sizes:
You have to drive and you and have to try if you want the win, you don't achieve anything if you just cruise around - Jari-Matti Latvala
Long live the forums! Down with FB!
Long live the forums! Down with FB!
Sweet....thanks for the info. I will look further into the SPX Kent-Moore and see what I can dig up.
From the pics, it looks like they sell the pig tail version of the connectors....hopefully I can find just the pins to avoid splicing different color wires together.
From the pics, it looks like they sell the pig tail version of the connectors....hopefully I can find just the pins to avoid splicing different color wires together.
maciek puszynski
01 Impreza | v6 STi RA | 5mt | ej236t
93 Legacy Turbo | TW | 4eat | ej22t
16 WRX | 6mt | fa20
98 Legacy GT | wagon | 5mt | ej25d
2.36L Turbo - RSTi Build
01 Impreza | v6 STi RA | 5mt | ej236t
93 Legacy Turbo | TW | 4eat | ej22t
16 WRX | 6mt | fa20
98 Legacy GT | wagon | 5mt | ej25d
2.36L Turbo - RSTi Build
SPX Kent-Moore makes all the subaru diag. tools like the select monitor.
Josh
surrealmirage.com/subaru
1990 Legacy (AWD, 6MT, & EJ22T Swap)
2020 Outback Limted XT
If you need to get a hold of me please email me rather then pm
surrealmirage.com/subaru
1990 Legacy (AWD, 6MT, & EJ22T Swap)
2020 Outback Limted XT
If you need to get a hold of me please email me rather then pm
Re: Sourcing Subaru connector pins
Just to build out this thread a bit, looks like the Subaru dealer service kit is still available from Bosch/Kent-Moore as item J-47606. This kit has all of the Subaru specific RK-TFA-xxx terminals with short pigtails already crimped. Seems like most dealers will have this kit and may be willing to sell the replacement pigtails or at least allow you to ID the terminal type so that you can buy the terminals directly from Bosch which now owns the Kent-Moore automotive business.
https://subaru.service-solutions.com/Default.aspx
http://techinfo.subaru.com/proxy/60786/ ... 668812.pdf
Or, you can go to the junkyards and harvest wiring connectors from the interior harness connectors. I've noticed that the pin types are similar between the engine sensor harnesses and some of the interior connectors like the super multiple junction for example.
https://subaru.service-solutions.com/Default.aspx
http://techinfo.subaru.com/proxy/60786/ ... 668812.pdf
Or, you can go to the junkyards and harvest wiring connectors from the interior harness connectors. I've noticed that the pin types are similar between the engine sensor harnesses and some of the interior connectors like the super multiple junction for example.
1987 VW Westfalia Vanagon - EJ22T Powered
1994 Legacy Touring Wagon
1994 Legacy Touring Wagon
Re: Sourcing Subaru connector pins
Great info and thanks for sharing!
Josh
surrealmirage.com/subaru
1990 Legacy (AWD, 6MT, & EJ22T Swap)
2020 Outback Limted XT
If you need to get a hold of me please email me rather then pm
surrealmirage.com/subaru
1990 Legacy (AWD, 6MT, & EJ22T Swap)
2020 Outback Limted XT
If you need to get a hold of me please email me rather then pm
-
- Third Gear
- Posts: 610
- Joined: Sat Mar 22, 2014 3:10 am
- Location: Northern Virginia, USA
- Contact:
Re: Sourcing Subaru connector pins
Ohhhhh let me know when you are ready to make harnesses, I'll be your first customer
